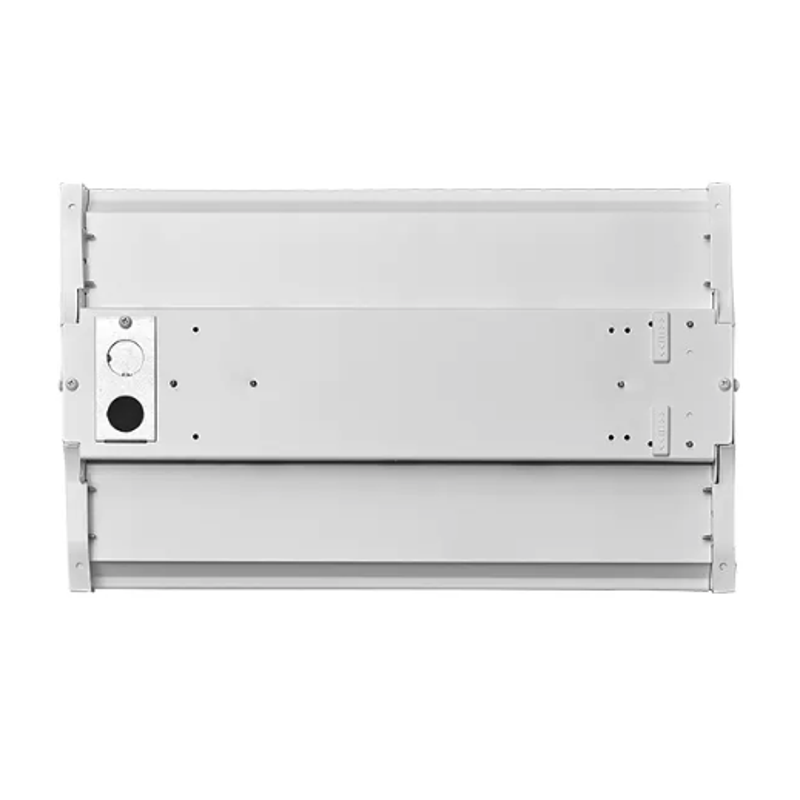

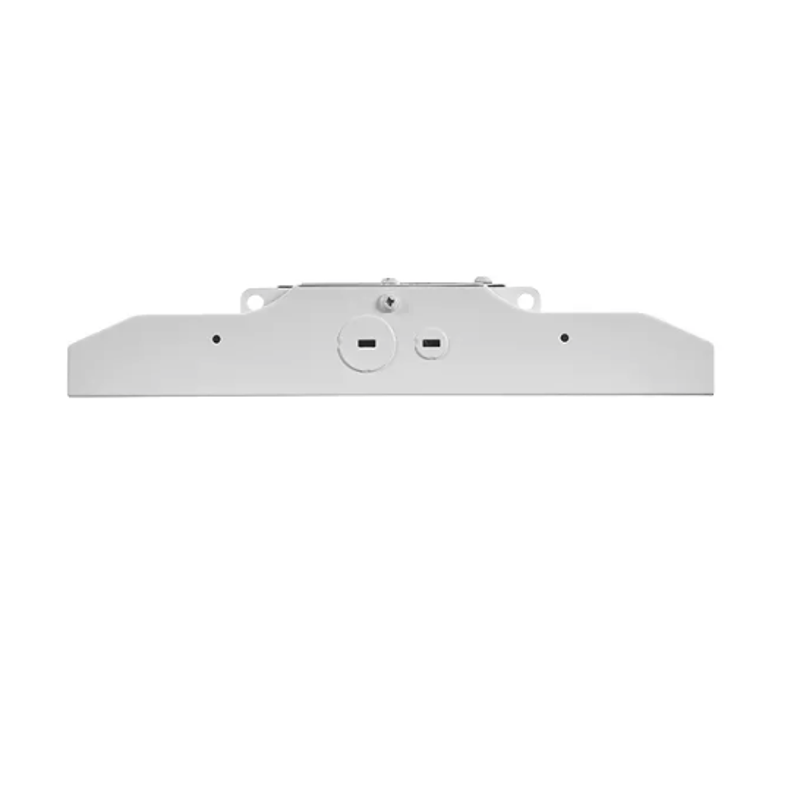

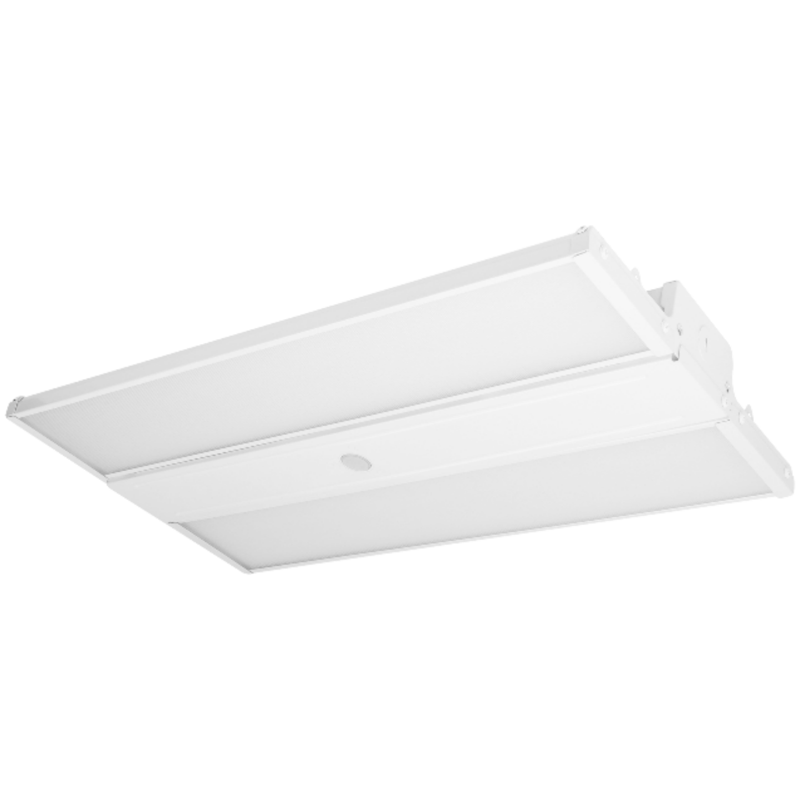

CALH1
LED Linear Highbay
- Wattage： 100W 110W 115W 135W 155W 165W 185W 200W 210W 230W 270W
- Voltage： 120-277V
- Correlated Color Temperature： 5000K
- Efficacy： 155lm/W
- Lumen Output： 15,500lm-41,850lm
- Color Rendering Index (CRI)： 70
- Color & Finish： White
- Product Sizes： 1.4FT 1.9FT 2.6FT
- Optional functions： Emergency Backup/ Microwave Sensor
- Warranty： 5 Years
- Parameters
- Wattage： 100W 110W 115W 135W 155W 165W 185W 200W 210W 230W 270W
- Voltage： 120-277V
- Correlated Color Temperature： 5000K
- Efficacy： 155lm/W
- Lumen Output： 15,500lm-41,850lm
- Color Rendering Index (CRI)： 70
- Color & Finish： White
- Product Sizes： 1.4FT 1.9FT 2.6FT
- Optional functions： Emergency Backup/ Microwave Sensor
- Warranty： 5 Years
High Performance Linear Highbay Lighting Solution: Efficient and Adaptable
Experience superior lighting with our budget-oriented luminaire, designed for versatility and efficiency. This fixture delivers exceptional brightness at an impressive efficiency of 15 lumens per watt (LPW), ensuring both energy savings and powerful illumination.Ideal for a range of applications, from commercial to industrial environments, this lighting fixture is designed to meet the needs of any space requiring high-quality, adjustable lighting.
- Adjustable Settings: Field-adjustable power
- Robust Design: Incorporates a CLASS 2 driver with OTP (Over Temperature Protection) and high level 6/4kV surge protection for enhanced durability.
- Material: Constructed from galvanized steel, ensuring longevity and reliability.
| Model | Wattage | CCT | Lumen | Efficacy | Voltage |
| CALH1 1.4FT | 100W 115W 135W | 5000K | 15,000lm-20,250lm | 155lm/W | 120-277V |
| CALH1 1.9FT | 110W 165W 210W | 5000K | 17,050lm-32,550lm | 155lm/W | 120-277V |
| CALH1 1.9FT | 155W 185W 200W | 5000K | 24,025lm-31,000lm | 155lm/W | 120-277V |
| CALH1 2.6FT | 200W 230W 270W | 5000K | 31,000lm-41,850lm | 155lm/W | 120-277V |
