CAP
LED Flat Panel light
- Wattage： 20W 25W 30W 35W 40W 50W
- Voltage： AC 100-277V
- Correlated Color Temperature： 3,000K 3,500K 4,000K 5,000K
- Efficacy： 130lm/W
- Lumen Output： 2,600lm-6,500lm
- Color Rendering Index (CRI)： 80
- Color & Finish： White
- Product Sizes： 1*4 2*2 2*4
- Optional functions： Emergency backup/ Motion sensor
- Warranty： 5 years
- Parameters
- Wattage： 20W 25W 30W 35W 40W 50W
- Voltage： AC 100-277V
- Correlated Color Temperature： 3,000K 3,500K 4,000K 5,000K
- Efficacy： 130lm/W
- Lumen Output： 2,600lm-6,500lm
- Color Rendering Index (CRI)： 80
- Color & Finish： White
- Product Sizes： 1*4 2*2 2*4
- Optional functions： Emergency backup/ Motion sensor
- Warranty： 5 years

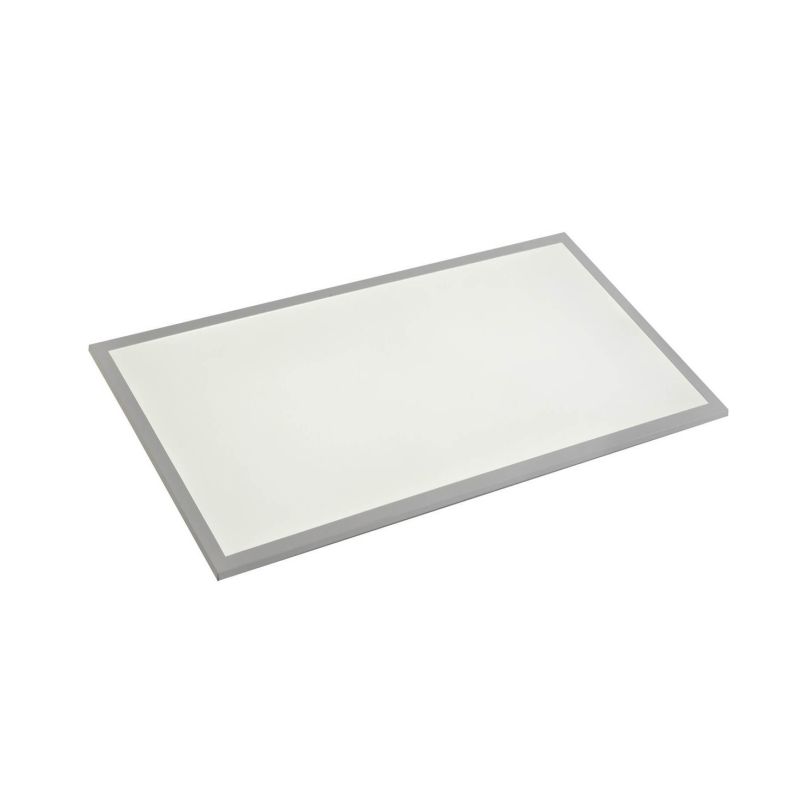

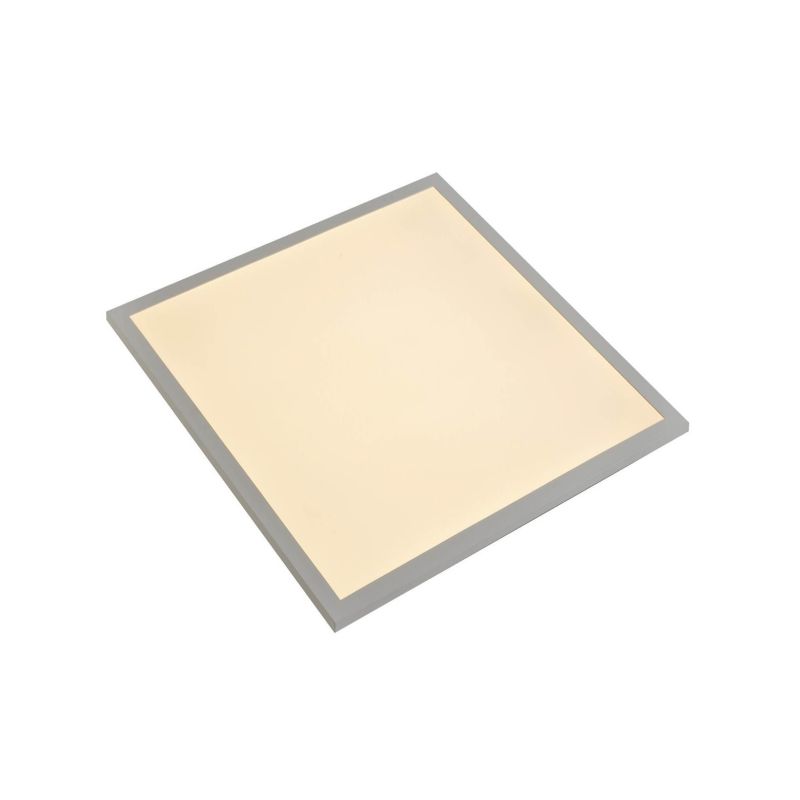

Field Fit LED Flat Panel: Efficient, Versatile, and Flicker-Free
The Field Fit LED Flat Panel offers a high-performance lighting solution with selectable wattage and CCT, ensuring uniform and long-lasting illumination. Designed for offices, retail stores, schools, and general applications, it delivers significant energy savings compared to traditional fluorescent troffers. With a sealed design and a high-quality reflective panel, it enhances occupant comfort while maintaining maximum efficiency.
- Selectable Wattage & CCT
- Available Sizes: 1×4, 2×2, 2×4
- Dimmable: 0-10V flicker-free driver
- Energy Efficient vs. fluorescent troffers or panels
- Comfort-Optimized with a reflective panel for better light quality
| Model | Wattage | CCT | Lumen | Efficacy | Voltage |
| CAP 1*4 | 20W, 25W, 30W, 35W, 40W | 3000K 3500K 4000K 5000K | 2,600lm-5,200lm | 130lm/W | 100-277V |
| CAP 2*2 | 20W, 25W, 30W, 35W, 40W | 3000K 3500K 4000K 5000K | 2,600lm-5,200lm | 130lm/W | 100-277V |
| CAP 2*4 | 25W, 30W, 35W, 40W, 50W | 3000K 3500K 4000K 5000K | 3,250lm-6,500lm | 130lm/W | 100-277V |
