CAPL
- Wattage： 80W 100W 120W 150W 170W 200W 220W 240W 260W 280W 310W
- Voltage： 100-277V/277-480V
- Correlated Color Temperature： 3000K, 4000K, 5000K
- Efficacy： 150lm/W
- Lumen Output： 12,000lm-46,500lm
- Color Rendering Index (CRI)： 70
- Color & Finish： Dark bronze/White/Black
- Optional functions： Twist lock Photocell
- Warranty： 5 Years
- Parameters
- Wattage： 80W 100W 120W 150W 170W 200W 220W 240W 260W 280W 310W
- Voltage： 100-277V/277-480V
- Correlated Color Temperature： 3000K, 4000K, 5000K
- Efficacy： 150lm/W
- Lumen Output： 12,000lm-46,500lm
- Color Rendering Index (CRI)： 70
- Color & Finish： Dark bronze/White/Black
- Optional functions： Twist lock Photocell
- Warranty： 5 Years

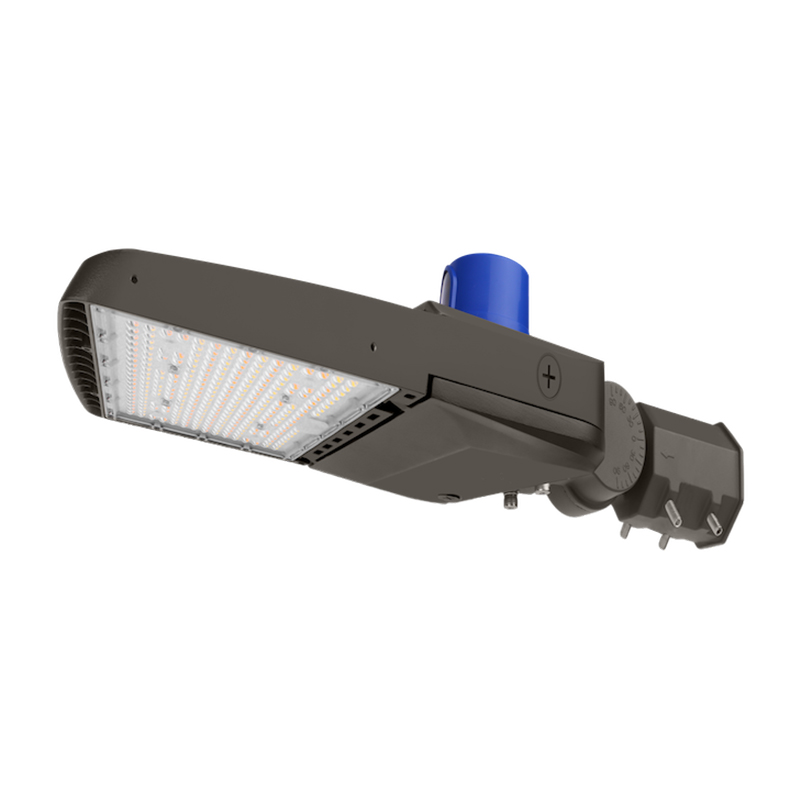

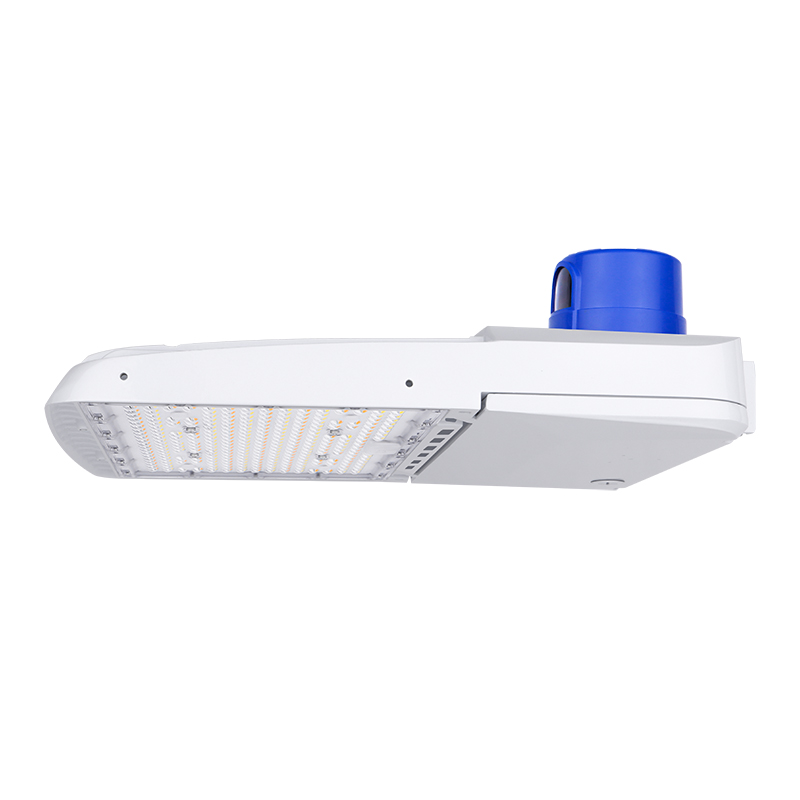

CAPL Parking lot light
The CAPL series Area Light is a durable and versatile outdoor luminaire designed to excel in any environment. Equipped with high-efficiency, professional-grade LEDs, it delivers superior lighting performance. The CAPL is available in wattages of 80W, 100W, 120W, 150W, 170W, 200W, 220W, 240W, 260W, 280W, and 310W, with selectable color temperatures of 3000K, 4000K, and 5000K. It offers multiple optical distributions, including Type III, Type IV, and Type V, to suit a variety of applications. Mounting options include Slip Fitter, Square Pole, Round Pole, Wall Mount, Yoke Mount, and Universal Brackets. This Area Light is the ideal solution for parking lots, plazas, shopping centers, parks, roadways, and other general lighting applications, providing unmatched performance and reliability.
- High Efficiency: Professional-grade LEDs delivering 12,800lm to 46,500lm, replacing 250W to 1000W HID luminaires.
- Versatile Wattage and CCT: Selectable wattages (80W to 310W) and color temperatures (3000K, 4000K, 5000K).
- Multiple Optics: Available in Type III, Type IV, and Type V distributions for diverse applications.
- Flexible Mounting Options: Supports Slip Fitter, Square Pole, Round Pole, Wall Mount, and Yoke Mount installations.

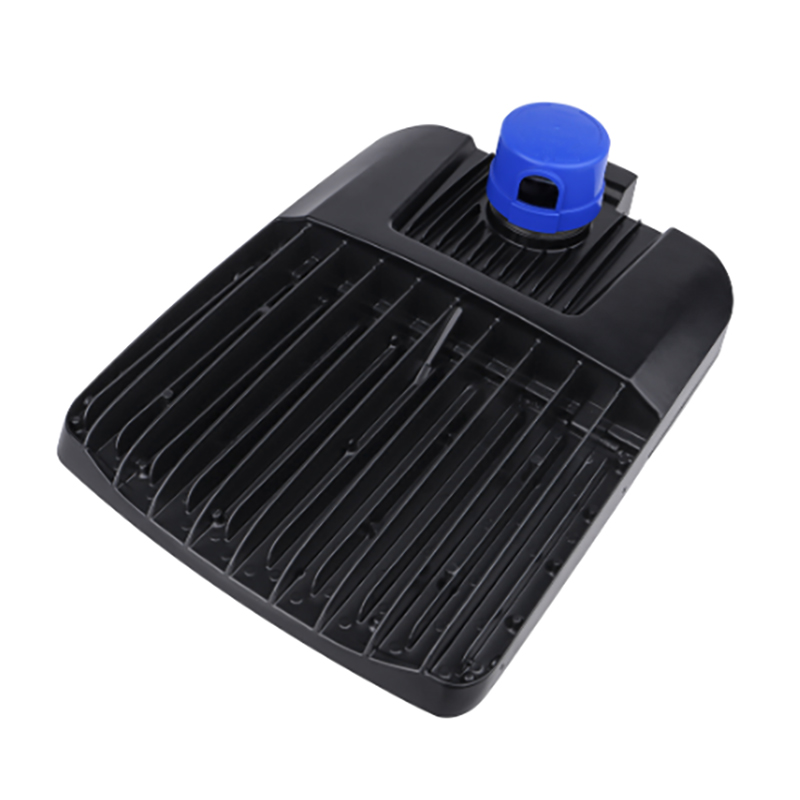

- Durable Design: Rugged die-cast aluminum housing with excellent thermal management and sealed against environmental contaminants.
- Wide Voltage Compatibility: Supports 120-277V, and 277-480V inputs, with built-in surge protection (10KV/20KV).
- Certified Quality: UL certified, DLC Premium qualified, and suitable for wet locations.
- 5-Year Warranty: Backed by a reliable 5-year limited warranty for peace of mind.
| Model | Wattage | CCT | Lumen | Efficacy | Voltage |
| CAPL | 80W-100W-120W-150W | 3,000K 4,000K 5,000K | 12,000lm-22,500lm | 150lm/W | 100-277V/277-480V |
| CAPL | 170W-200W-220W-240W | 3,000K 4,000K 5,000K | 25,500lm-36,000lm | 150lm/W | 100-277V/277-480V |
| CAPL | 240W-260W-280W-310W | 3,000K 4,000K 5,000K | 36,000lm-46,500lm | 150lm/W | 100-277V/277-480V |
